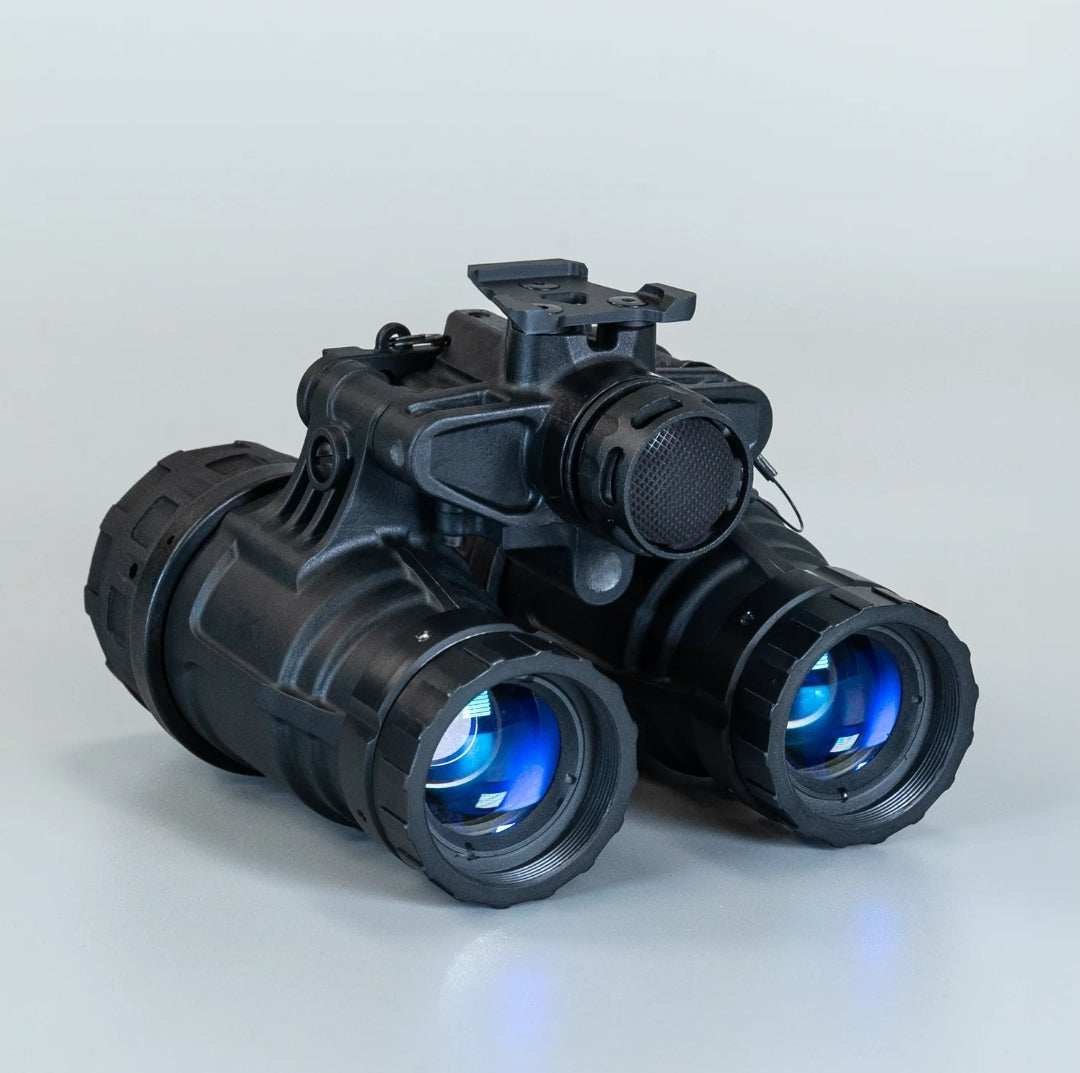

UANVB Injection Molded Katana

The Ultralight Articulating Night Vision Binocular device weights in at 17.76oz. The articulating design enables one or both eyes to be used along with thermal optics or other non-passive aiming systems. The UANVB Katana allows users to operate in vehicles and confined space management without the need to fully stow the unit.

The minimalist design incorporates a built-in onboard battery or an optional LEMO Power Port for auxiliary power via head born battery packs. Push button on/off in the recessed assembly reduces weight, footprint and design of the bridge. Individual pod power on/off when articulated past 90 degrees in the horizontal position allows the user to operate in confined space and eliminate snag hazards.

The Katana features a “Friction Lock Interpupillary Adjustment” that allows users to quickly and easily set IP stop distance with a simple set and reset for your adjustment needs. This feature comes standard on all units at no additional charge

This unit is rugged and exceeds MIL-STD-810G and drop tested to the NATO 1.5-meter drop standard. All Nocturn Industries products are designed and hand built in New Hampshire, USA.

Material: Polymer

Tube type: 18mm MX-10160 style or MX11769 style with EGAC pigtail removed.

Color: Matte Black (Cerakote), Matte Coyote (Cerakote), Matte OD (Cerakote)

Weight: based off Optic choice, Power Port accessibility and Image Intensifier choice

(Battery + Standard Pvs-14 lenses and Image intensifiers): 17.76oz/1.11lbs/503.5g

(No Battery + RPO Pvs-14 lenses and Image intensifiers): 15.12oz/0.94lbs/428.6g

On board power: CR123a

Out board Power: Optional LEMO port

*DISCLAIMER: Do not use onboard power and remote power simultaneously. Main power controlled by battery pack when remote power is utilized.

IR Illuminator: N/A

Pod power on/off when rotated past 90 degrees: Yes (Individually)

Ingress rating: IP68

Mount style: Dovetail

Warranty: Lifetime repair of all housing components no questions asked. (Does not cover damages to intensifier tubes or optics assemblies)
